Offroad 4×4

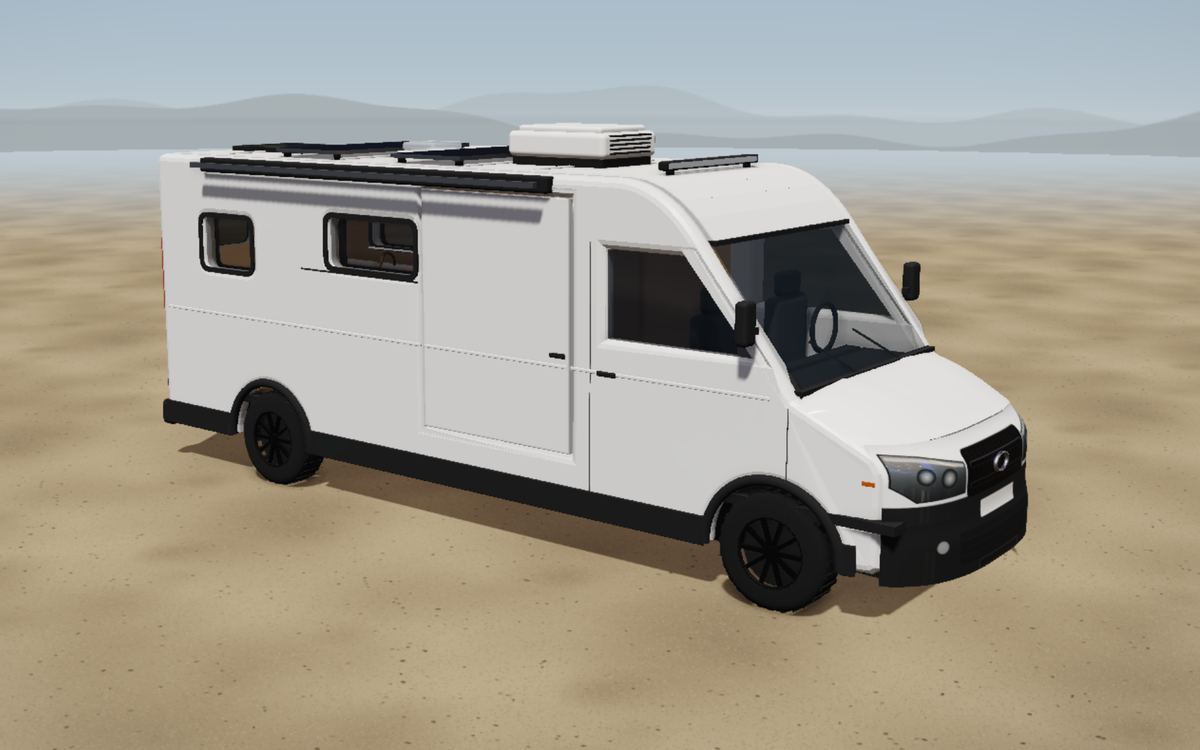

Crafter / TGE 4MOTION LWB H2 as a camper
Offroad 4×4, 6.84 m long. After insulation and floor, 428 × 174 cm is left inside with 177 cm standing height. With our suggested layout the camper weighs about 3,694 kg ready to drive, 194 kg more than the permitted 3.5 t. The weight check in the studio shows where to save.
- Inside after insulation
- 428 × 174 cm
- Standing height
- 177 cm
- Load space, bare
- 430 × 183 × 186 cm
- Outside
- 684 × 204 × 259 cm
- Wheelbase
- 449 cm
- Kerb weight
- 2,510 kg
- Gross weight
- 3.5 t
- Payload, empty
- 990 kg
- Diesel tank
- 75 l
- New from
- about CHF 73,000
- Drive
- Selectable all-wheel drive, 177 hp, 8-speed automatic
Side view with dimensions
Dashed: the load space, bare from the factory. Insulation, lining and floor take room, so 428 × 174 cm is left inside with 177 cm height.
Weight with our suggested layout
This is how the studio adds up the suggestion: vehicle, build, full tanks, people and luggage, up to the permitted gross weight of 3.5 t.
- Empty vehicle 2,378 kg
- Furniture and boards 346 kg
- Insulation and lining 222 kg
- Systems 185 kg
- Exterior equipment 56 kg
- Water and diesel 207 kg
- People and luggage 300 kg
- Overweight 194 kg
Empty vehicle: Base vehicle without driver and diesel, with tyres and suspension. Payload when empty means gross weight minus kerb weight. It depends on the gross weight the vehicle is registered for.
What the suggestion contains
The studio places these parts for this vehicle. In the studio you can move, swap or remove any of them.
Compared: Offroad 4×4
| Vehicle | Length | Inside after insulation | Height inside | Payload, empty |
|---|---|---|---|---|
| Transit AWD L3 H2 | 5.98 m | 351 × 169 cm | 170 cm | 1,181 kg |
| Daily 4×4 | 6.06 m | 352 × 171 cm | 181 cm | 2,300–3,800 kg |
| Sprinter 4×4 Standard H2 | 5.93 m | 325 × 170 cm | 192 cm | 1,080–2,580 kg |
| Sprinter 419 4×4 L3 H2 | 6.97 m | 428 × 169 cm | 192 cm | 850–1,450 kg |
| Crafter / TGE 4MOTION LWB H2 | 6.84 m | 428 × 174 cm | 177 cm | 990 kg |
Model names only identify the base vehicle. Explore My Van is not affiliated with any vehicle maker. Sizes, weights and prices are guide values and depend on model year and equipment: measure the vehicle before you buy.
